Automatic Tablet / Capsule Counting & Filling Line

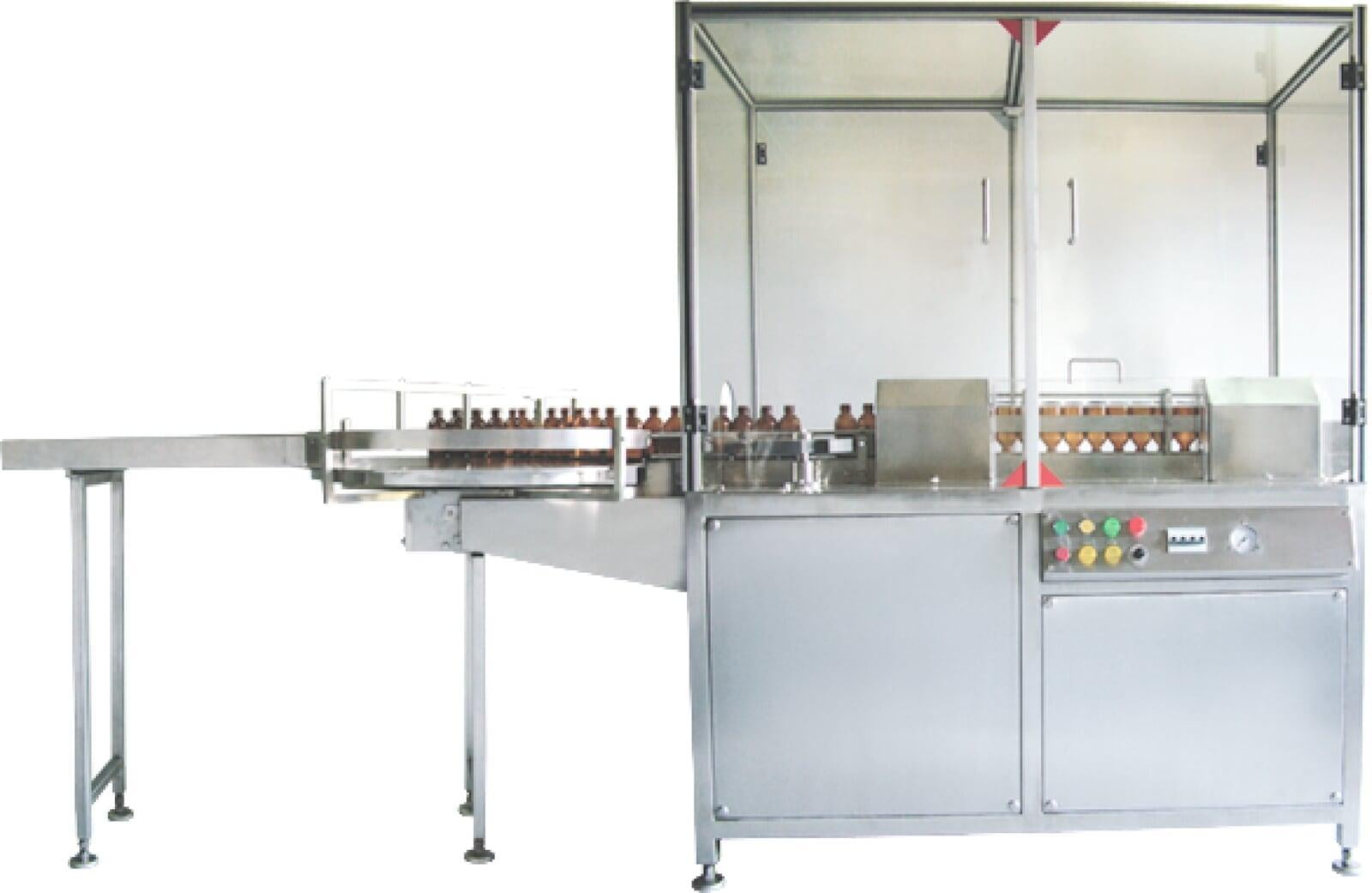

Automatic Airjet & Vacuum Bottle Cleaning Machine
Salient Features
- Machine fitted with Inbuilt Turn Table (30" Dia) & Bottle Loading Platform for easy Bottle feeding.
- Inbuilt Blower Type Vacuum Generator
- 6-8 Air Cleaning Cycles inside Vacuum Chamber
- Cleaning in Inverted Bottle Neck Down Position for Efficient Cleaning
- HMI with 3 Level Password Access System
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Ionizer Unit for Removal of Static Charges from PET / HDPE Bottles
- Aluminum Section Polycarbonate / Toughened Glass Cabinet
| Model | ME-AJC-80 | ME-AJC-120 | ME-AJC-180 |
|---|---|---|---|
| Output Speed | Up to 80 Bottles/min | Up to 120 Bottles/min | Up to 180 Bottles/min |
| Bottle Size | 30cc to 250cc | 30cc to 500/1000cc | 30cc to 500/1000cc |
| Machine Dimensions with Inbuilt Turn Table ( L x W x H) | 2000mm x 600mm x 1400mm | 2200mm x 600mm x 1400mm | 3000mm x 1000mm x 1400mm |

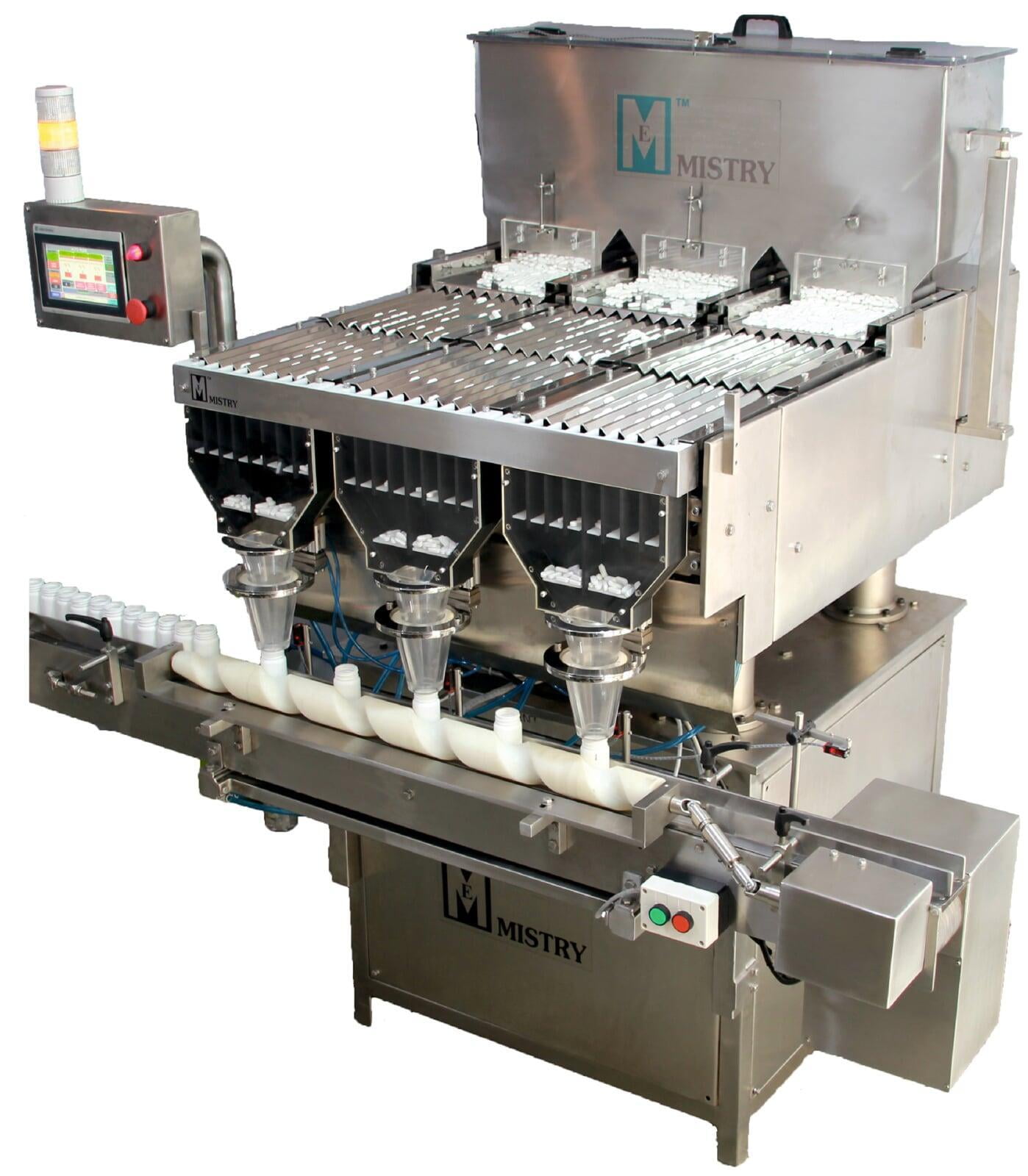

Automatic Tablet / Capsule Counting & Filling Machine
Salient Features
- S.S.316L Vibratory Tracks & Product Hopper
- Tablet / Capsule Count Setting from HMI Touchscreen
- Electronic Sensor Type Counting System
- No Change Parts required for change in Tablet / Capsule Size
- No Bottle - No Fill Interlock
- Tablet / Capsule Level Low - Alarm with Buzzer / Machine Stop
- Infeed Bottle Empty or Outfeed Bottle Accumulated - Machine Stop
- Motorized Head Height Adjustment
- HMI with 3 Level Password Access System
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Vision Camera Inspection System for Detecting Broken Tablets, Foreign Objects, Different Colour Tablets
| Model | ME-TC-6 | ME-TC-12 | ME-TC-18 | ME-TC-12x2 |
|---|---|---|---|---|
| Output Speed | Up to 25 to 30 Bottles/min | Up to 50 to 60 Bottles/min | Up to 75 to 80 Bottles/min | Up to 100 to 120 Bottles/min |
| Number of Counting Heads | 1 | 2 | 3 | 4 |
| Bottle Size | 30cc to 1000cc | 30cc to 1000cc | 30cc to 1000cc | 30cc to 1000cc |
| Machine Dimensions ( L x W x H) | 1200mm x 1200mm x 1400mm | 1500mm x 1200mm x 1400mm | 1600mm x 1200mm x 1400mm | 3000mm x 1500mm x 1400mm |
Automatic Multi Head Screw Capping Machine
Salient Features
- Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by Sterile Compressed Air
- Servo based Nozzle Motion
- Pink n Place Type Capping Heads
- HMI with 3 Level Password Access System
- No Bottle - No Wash System
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
| cGMP Model | ME-SC-60 | ME-SC-80 | ME-SC-100 | ME-SC-120 |
|---|---|---|---|---|
| Output Speed | Up to 60 Bottles/min | Up to 120 Bottles/min | Up to 150 Bottles/min | Up to 180 Bottles/min |
| Number of Capping Heads | 4 Head | 6 Head | 8 Head | 12 Head |
| Bottle Size | 30cc to 500/1000cc | 30cc to 500/1000cc | 30cc to 500/1000cc | 30cc to 500/1000cc |
| Machine Dimensions ( L x W x H) | 1800mm x 950mm x 1500mm | 1800mm x 950mm x 1500mm | 2000mm x 950mm x 1500mm | 2200mm x 950mm x 1500mm |
Automatic Sticker Labelling Machine (Round Bottles)
Salient Features
- Completely Synchronized with Individual Drive for Conveyor, Pressing Belt & Infeed
- PLC based Operation
- Servo based Label Dispensing Head
- HMI with 3 Level Password Access System
- Recipe Management for Easy & Fast Changeovers
- No Bottle - No Label Interlocks
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Batch Coding Printer- TIJ (Thermal Ink Jet) or TTO (Thermal Transfer Overprinter)
- Vision Camera based Inspection System with OCR/OCV, 1D & 2D Barcode Checking with Automatic Online Rejection System
- Bottle without Label - Online Rejection & Label Roll Splice Detection
| Model | ME-SL-120 | ME-RSL-240 | ME-RSL-300 |
|---|---|---|---|
| Output Speed | Up to 120 Bottles/min | Up to 240 Bottles/min | Up to 300 Bottles/min |
| Labelling Principle | Linear | Rotary | Rotary |
| Bottle Size | 30cc to 500/1000cc | 30cc to 500/1000cc | 30cc to 500/1000cc |
| Machine Dimensions ( L x W x H) | 2000mm x 700mm x 1500mm | 2500mm x 800mm x 1500mm | 2500mm x 800mm x 1500mm |
Automatic Sticker Labelling Machine (Flat Bottles)
Salient Features
- Completely Synchronized with Individual Drive for Bottom Conveyor, Top Conveyor & Infeed Belts / Worm Drive
- PLC based Operation
- Servo based Label Dispensing Head
- HMI with 3 Level Password Access System
- Recipe Management for Easy & Fast Changeovers
- No Bottle - No Label Interlocks
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Batch Coding Printer- TIJ (Thermal Ink Jet) or TTO (Thermal Transfer Overprinter)
- Attachment for Wrap around Labelling Round, Square & Rectangular Bottles in same Machine
- Vision Camera based Inspection System with OCR/OCV, 1D & 2D Barcode Checking with Automatic Online Rejection System
- Bottle without Label - Online Rejection & Label Roll Splice Detection
| Model | ME-SL-120S | ME-SL-120D | ME-SL-240D |
|---|---|---|---|
| Output Speed | Up to 120 Bottles/min | Up to 120 Bottles/min | Up to 240 Bottles/min |
| Labelling type | Single Side | Double Side | Double Side |
| Infeed Drive | Infeed Belt Drive | Infeed Belt Drive | Infeed Worm Drive |
| Bottle Size | 30cc to 500/1000cc | 30cc to 500/1000cc | 30cc to 500/1000cc |
| Machine Dimensions ( L x W x H) | 2000mm x 700mm x 1500mm | 2500mm x 800mm x 1500mm | 2500mm x 800mm x 1500mm |
