Automatic Dry Powder Syrup Filling Line
Automatic Airjet & Vacuum Bottle Cleaning Machine
Salient Features
- Machine fitted with Inbuilt Turn Table (30" Dia) & Bottle Loading Platform for easy Bottle feeding.
- Inbuilt Blower Type Vacuum Generator
- 6-8 Air Cleaning Cycles inside Vacuum Chamber
- Cleaning in Inverted Bottle Neck Down Position for Efficient Cleaning
- HMI with 3 Level Password Access System
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Ionizer Unit for Removal of Static Charges from PET / HDPE Bottles
- Aluminum Section Polycarbonate / Toughened Glass Cabinet
| Model | ME-AJC-80 | ME-AJC-120 | ME-AJC-180 |
|---|---|---|---|
| Output Speed | Up to 80 Bottles/min | Up to 120 Bottles/min | Up to 180 Bottles/min |
| Bottle Size | 10cc to 250cc | 10cc to 500/1000cc | 10cc to 500/1000cc |
| Machine Dimensions with Inbuilt Turn Table ( L x W x H) | 2000mm x 600mm x 1400mm | 2200mm x 600mm x 1400mm | 3000mm x 1000mm x 1400mm |

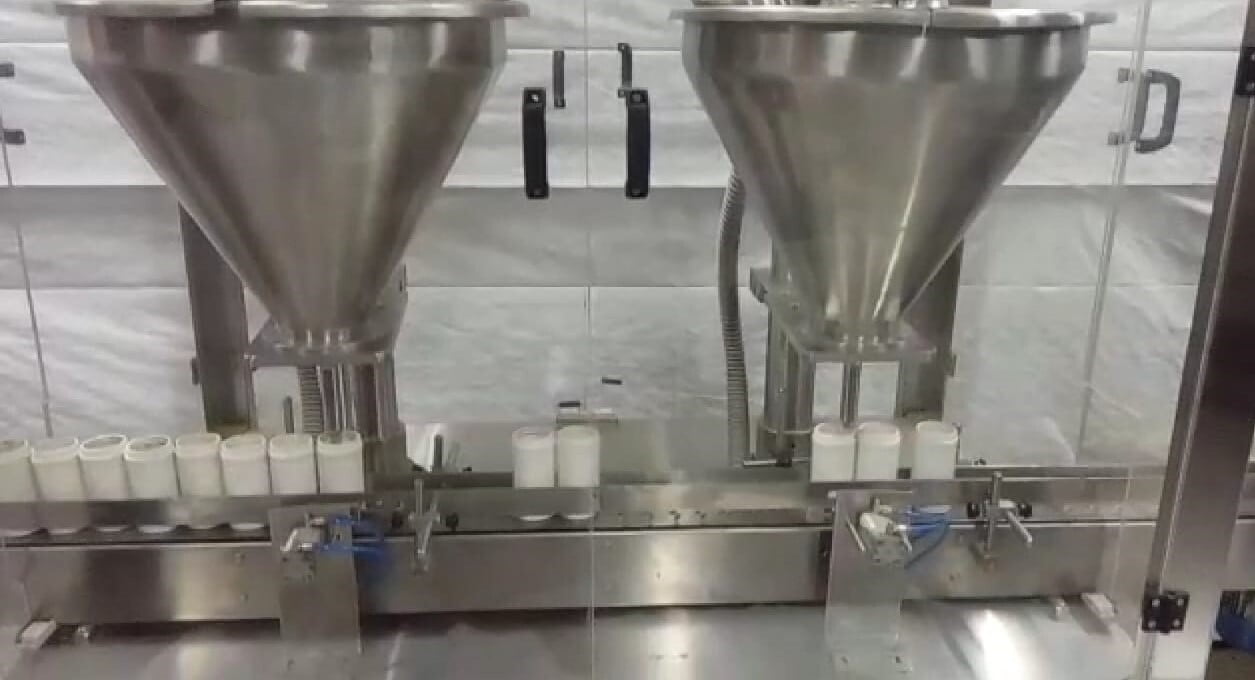

Automatic Dry Powder Syrup Filling Machine (Auger Type Filling Heads)
Salient Features
- All Product Contact Parts made from S.S.316
- Auger based Powder Filling Heads
- Servo Controlled Auger Screws
- Fill Grammage Setting from HMI
- Recipe Feature for easy Change Over
- HMI with 3 Level Password Access System
- No Bottle - No Fill System
Optional
- Weigh metric type Filling System
- Micro Dozer Type Auger Heads with Primary & Secondary Product Hopper
- Online Check weighing & Automatic Online Rejection
- SCADA based Reporting Tool with Weight Report of each Bottle
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Inbuilt Temperature & Humidity Sensor with Temp or Humidity above Set Limit - Machine Stop Interlock
| cGMP Model | ME-PF-30AS | ME-PF-60AS | ME-PF-90AS | ME-PF-120AS |
|---|---|---|---|---|
| Output Speed | Up to 25 Bottles/min | Up to 50 Bottles/min | Up to 75 Bottles/min | Up to 100 Bottles/min |
| Number of Filling Heads | 1 Head | 2 Head | 3 Head | 4 Head |
| Bottle Size | 30cc to 500cc | 30cc to 500cc | 30cc to 500cc | 30cc to 500cc |
| Machine Dimensions ( L x W x H) | 1500mm x 1200mm x 1500mm | 1800mm x 2500mm x 1500mm | 2000mm x 1200mm x 1500mm | 2500mm x 1200mm x 1500mm |
Automatic Multi Head ROPP Capping Machine
Salient Features
- Orientor type Cap Feeder (common for 22mm , 25mm & 28mm ROPP Caps)
- Completely Synchronized Operation of Machine with Conveyor, Starwheel & Centre Turret
- HMI with 3 Level Password Access System
- No Bottle - No Cap Interlock
- Cap Empty in Chute - Machine Stop
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Aluminum Section Polycarbonate or Toughened Glass Cabinet
| cGMP Model | ME-CS-60 | ME-CS-120 | ME-CS-150 | ME-CS-180 |
|---|---|---|---|---|
| Output Speed | Up to 60 Bottles/min | Up to 120 Bottles/min | Up to 150 Bottles/min | Up to 180 Bottles/min |
| Number of Capping Heads | 4 Head | 6 Head | 8 Head | 12 Head |
| Bottle Size | 30cc to 500cc | 30cc to 500cc | 30cc to 500cc | 30cc to 500cc |
| Machine Dimensions ( L x W x H) | 1800mm x 950mm x 1500mm | 1800mm x 950mm x 1500mm | 2000mm x 950mm x 1500mm | 2200mm x 1100mm x 1500mm |
Automatic Multi Head Screw Capping Machine
Salient Features
- Vibratory Bowl type Cap Feeder for Screw Caps
- Pick n Place type Rotary Capping Heads
- Machine suitable for Child Resistant Caps (CRC)
- Manually adjustable Capping Torque Heads
- Completely Synchronized Operation of Machine with Conveyor, Starwheel & Centre Turret
- HMI with 3 Level Password Access System
- No Bottle - No Cap Interlock
- Cap Empty in Chute - Machine Stop
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
| cGMP Model | ME-SC-60 | ME-SC-80 | ME-SC-100 | ME-SC-120 |
|---|---|---|---|---|
| Output Speed | Up to 60 Bottles/min | Up to 80 Bottles/min | Up to 100 Bottles/min | Up to 120 Bottles/min |
| Number of Capping Heads | 4 Head | 6 Head | 8 Head | 12 Head |
| Bottle Size | 30cc to 500cc | 30cc to 500cc | 30cc to 500cc | 30cc to 500cc |
| Machine Dimensions ( L x W x H) | 1800mm x 950mm x 1500mm | 1800mm x 950mm x 1500mm | 2000mm x 950mm x 1500mm | 2200mm x 1100mm x 1500mm |
Automatic Sticker Labelling Machine
Salient Features
- Completely Synchronized with Individual Drive for Conveyor, Pressing Belt & Infeed
- PLC based Operation
- Servo based Label Dispensing Head
- HMI with 3 Level Password Access System
- Recipe Management for Easy & Fast Changeovers
- No Bottle - No Label Interlocks
Optional
- Industrial Panel PC (IPC) & SCADA based 21 CFR Part 11 Compliance
- Batch Coding Printer- TIJ (Thermal Ink Jet) or TTO (Thermal Transfer Overprinter)
- Vision Camera based Inspection System with OCR/OCV, 1D & 2D Barcode Checking with Automatic Online Rejection System
- Bottle without Label - Online Rejection & Label Roll Splice Detection
| Model | ME-SL-120 | ME-RSL-240 | ME-RSL-300 |
|---|---|---|---|
| Output Speed | Up to 120 Bottles/min | Up to 240 Bottles/min | Up to 300 Bottles/min |
| Labelling Principle | Linear | Rotary | Rotary |
| Bottle Size | 30cc to 500cc | 30cc to 500cc | 30cc to 500cc |
| Machine Dimensions ( L x W x H) | 2000mm x 700mm x 1500mm | 2500mm x 800mm x 1500mm | 2500mm x 800mm x 1500mm |
