MDI Canister Airjet Cleaning & Sticker Labelling Machines

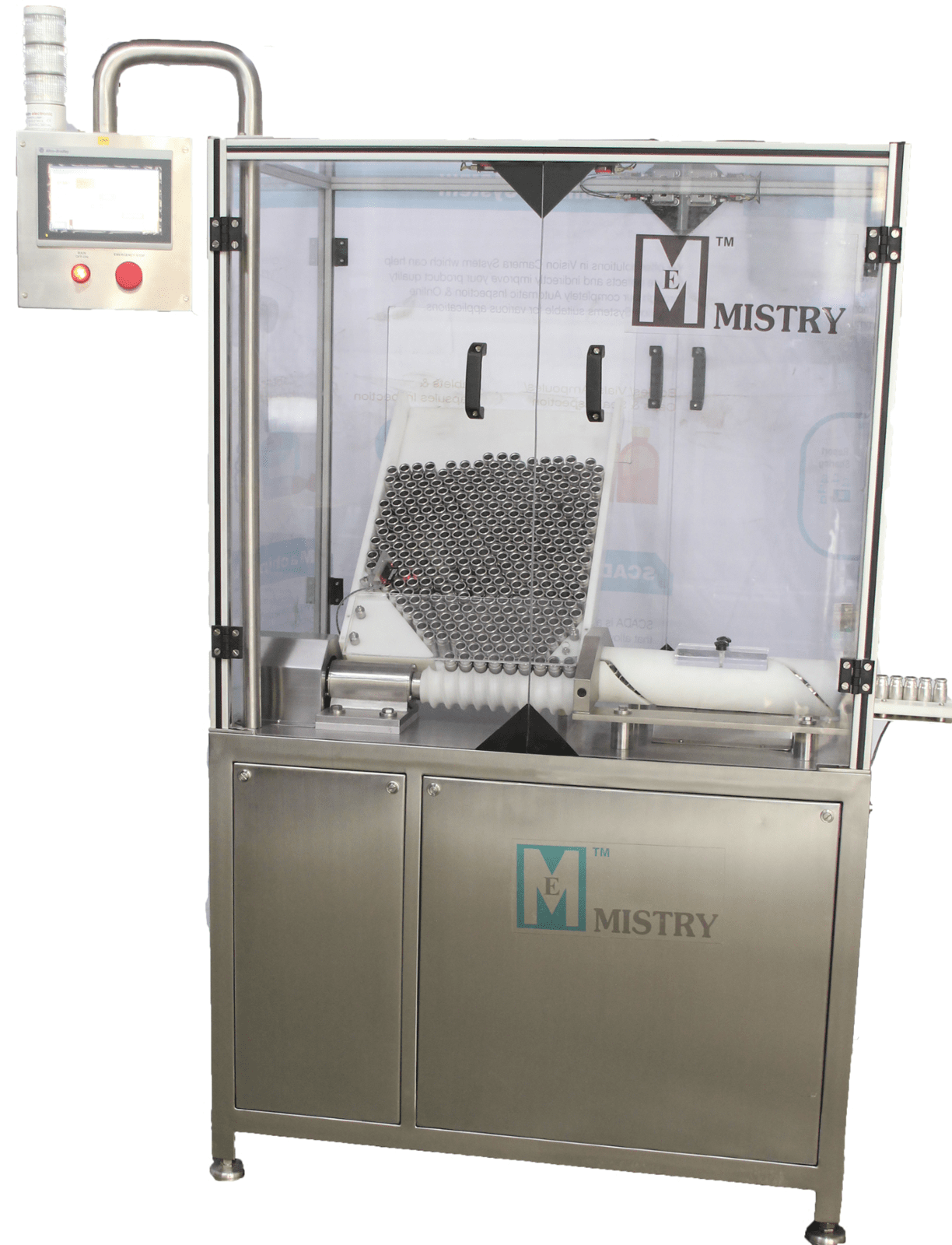

Automatic Airjet & Vacuum Bottle Cleaning Machine
Salient Features
- Machine fitted with Hopper Loading for easy Canister feeding.
- 6-8 Air Cleaning Cycles
- HMI with 3 Level Password Access System
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Automatic Canister Loader & Orinetor
| Model | ME-AJC-80C | ME-AJC-120C |
|---|---|---|
| Output Speed | Up to 80 Bottles/min | Up to 120 Bottles/min |
| Bottle Size | 10cc to 250cc | 10cc to 500/1000cc |
| Machine Dimensions with Inbuilt Turn Table ( L x W x H) | 1000mm x 600mm x 1400mm | 1200mm x 600mm x 1400mm |
Automatic Sticker Labelling Machine
Salient Features
- Completely Synchronized with Individual Drive for Conveyor, Pressing Belt & Infeed
- PLC based Operation
- Servo based Label Dispensing Head
- HMI with 3 Level Password Access System
- Recipe Management for Easy & Fast Changeovers
- No Vial - No Label Interlocks
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Batch Coding Printer- TIJ (Thermal Ink Jet) or TTO (Thermal Transfer Overprinter)
- Vision Camera based Inspection System with OCR/OCV, 1D & 2D Barcode Checking with Automatic Online Rejection System
- Vial without Label - Online Rejection & Label Roll Splice Detection
| Model | ME-SL-120 | ME-RSL-240 | ME-RSL-300 |
|---|---|---|---|
| Output Speed | Up to 120 Canisters/min | Up to 240 Canisters/min | Up to 300 Canisters/min |
| Labelling Principle | Linear | Rotary | Rotary |
| Vial Size | 2mL to 100mL | 2mL to 100mL | 2mL to 100mL |
| Machine Dimensions ( L x W x H) | 2000mm x 700mm x 1500mm | 2500mm x 800mm x 1500mm | 2500mm x 800mm x 1500mm |
