Automatic Injectable Dry Powder Vial Filling Line
Automatic Linear Vial Washing Machine
Salient Features
- Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by Sterile Compressed Air
- Pressure transmitter showing Actual Air & Water Pressure on HMI
- HMI with 3 Level Password Access System
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
| cGMP Model | ME-VW-150 | ME-VW-300 |
|---|---|---|
| Output Speed | Up to 150 Vials/min | Up to 300 Vials/min |
| Number of Wash Cycle | Internal: 3 Water + 3 Air External: 2 Water + 1 Air | Internal: 3 Water + 3 Air External: 2 Water + 1 Air |
| Vial Size | 2mL to 100mL | 2mL to 100mL |
| Machine Dimensions ( L x W x H) | 3000mm x 1200mm x 1400mm | 3000mm x 1500mm x 1400mm |
Automatic Rotary Vial Washing Machine
Salient Features
- Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by Sterile Compressed Air
- Servo based Nozzle Motion
- Pressure transmitter showing Actual Air & Water Pressure on HMI
- HMI with 3 Level Password Access System
- No Bottle - No Wash System
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
| cGMP Model | ME-RVW-150 | ME-RVW-300 |
|---|---|---|
| Output Speed | Up to 150 Vials/min | Up to 300 Vials/min |
| Number of Wash Cycle | Internal: 3 Water + 3 Air External: 2 Water + 1 Air | Internal: 3 Water + 3 Air External: 2 Water + 1 Air |
| Vial Size | 2mL to 100mL | 2mL to 100mL |
| Machine Dimensions ( L x W x H) | 3000mm x 2100mm x 1500mm | 3000mm x 2500mm x 1500mm |

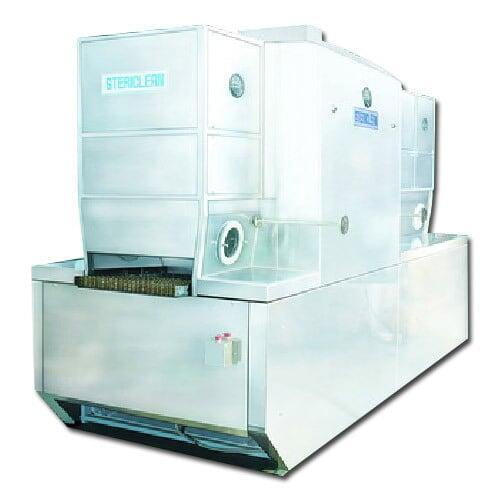

Sterilization & Depyrogenation Tunnel
Salient Features
- Tunnel consists of Drying Zone, Sterilizing Zone & Cooling Zone
- cGMP Model
- Maximum Temp of Sterilizing Zone: 350°C
- Class-100 HEPA Filters for all Zones
- PLC & HMI with 3 Level Password Access System
- Online Batch Report Printer though PLC
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
| cGMP Model | ME-ST-600 | ME-ST-900 | ME-ST-1000 | ME-ST-1200 |
|---|---|---|---|---|
| Output Speed | Up to 120 Vials/min | Up to 180 Vials/min | Up to 240 Vials/min | Up to 300 Vials/min |
| Zones | Drying Zone Sterilizing Zone Cooling Zone | Drying Zone Sterilizing Zone Cooling Zone | Drying Zone Sterilizing Zone Cooling Zone | Drying Zone Sterilizing Zone Cooling Zone |
| Vial Size | 2mL to 100mL | 2mL to 100mL | 2mL to 100mL | 2mL to 100mL |
| Machine Dimensions ( L x W x H) | 4 730mm x 1550mm x 2350mm | 4730mm x 1850mm x 2350mm | 4730mm x 1950mm x 2350mm | 4730mm x 2150mm x 2350mm |
Automatic Injectable Dry Powder Vial Filling & Rubber Stoppering Machine
Salient Features
- All Product Contact Parts of S.S.316L
- 12 Port Powder Wheel Design
- Multistroke Dosing System directly from Touchscreen (2-4 Strokes)
- Servo based Powder Wheel Rotation
- Online Sampling
- HMI with 3 Level Password Access System
- Recipe Management for Easy & Fast Changeovers
- No Vial - No Fill & No Vial - No Rubber Stoppering Interlocks
- Rubber Stopper Empty in Chute - Machine Stop
- Rubber Stopper Low in Bowl - Alarm with Buzzer
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Liquid Media Filling
- 100% Online Pre & Post Check Weighing with Automatic Online Rejection
- No Rubber Plug on Vial - Automatic Online Rejection
- Primary & Secondary Hopper for Rubber Stopper with Automatic Level Control
| cGMP Model | ME-VF-120DP | ME-VF-240DP |
|---|---|---|
| Output Speed | Up to 120 Vials/min | Up to 240 Vials/min |
| Number of Powder Wheel | Single | Double |
| Fill Size (mg) | 50mg to 1gm (Single Stroke) | 50mg to 1gm (Single Stroke) |
| Vial Size | 5mL to 100mL | 5mL to 100mL |
| Machine Dimensions ( L x W x H) | 2500mm x 1000mm x 1500mm | 3500mm x 1200mm x 1500mm |

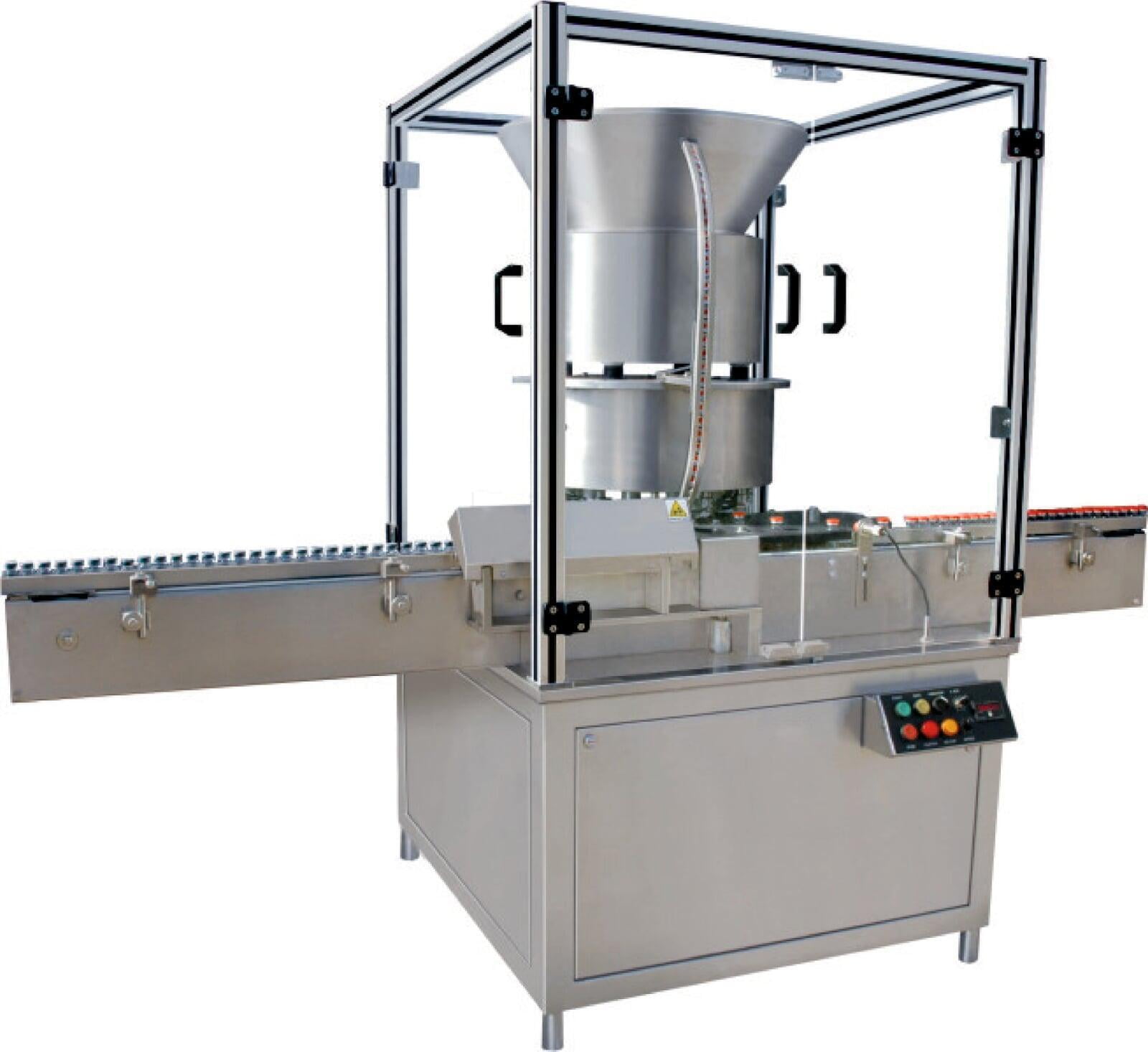

Automatic Vial Sealing Machine
Salient Features
- All Cap Contact Parts made of S.S.316
- Machine equipped with Safety Clutch System
- Adjustable Sealing Roller Pressure
- HMI with 3 Level Password Access System
- Recipe Management for Easy & Fast Changeovers
- Vial Seal Empty in Chute - Machine Stop
- Vial Seal Low in Bowl - Alarm with Buzzer
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- No Rubber Plug or Raised Rubber Plug on Vial - Automatic Online Rejection with Rejection Verification System
- No Seal on Vial - Automatic Online Rejection
- Automatic Motorized Head Height Setting with Recipe
| cGMP Model | ME-VS-120 | ME-VS-240 | ME-VS-300 |
|---|---|---|---|
| Output Speed | Up to 120 Vials/min | Up to 240 Vials/min | Up to 300 Vials/min |
| Number of Sealing Heads | 4 Heads | 8 Heads | 12 Heads |
| Vial Size | 2mL to 100mL | 2mL to 100mL | 2mL to 100mL |
| Machine Dimensions ( L x W x H) | 1600mm x 800mm x 1500mm | 1800mm x 900mm x 1500mm | 2000mm x 900mm x 1500mm |
Automatic Sticker Labelling Machine
Salient Features
- Completely Synchronized with Individual Drive for Conveyor, Pressing Belt & Infeed
- PLC based Operation
- Servo based Label Dispensing Head
- HMI with 3 Level Password Access System
- Recipe Management for Easy & Fast Changeovers
- No Vial - No Label Interlocks
Optional
- Industrial Panel PC & SCADA based 21 CFR Part 11 Compliance
- Batch Coding Printer- TIJ (Thermal Ink Jet) or TTO (Thermal Transfer Overprinter)
- Vision Camera based Inspection System with OCR/OCV, 1D & 2D Barcode Checking with Automatic Online Rejection System
- Vial without Label - Online Rejection & Label Roll Splice Detection
| Model | ME-SL-120 | ME-RSL-240 | ME-RSL-300 |
|---|---|---|---|
| Output Speed | Up to 120 Vials/min | Up to 240 Vials/min | Up to 300 Vials/min |
| Labelling Principle | Linear | Rotary | Rotary |
| Vial Size | 2mL to 100mL | 2mL to 100mL | 2mL to 100mL |
| Machine Dimensions ( L x W x H) | 2000mm x 700mm x 1500mm | 2500mm x 800mm x 1500mm | 2500mm x 800mm x 1500mm |
